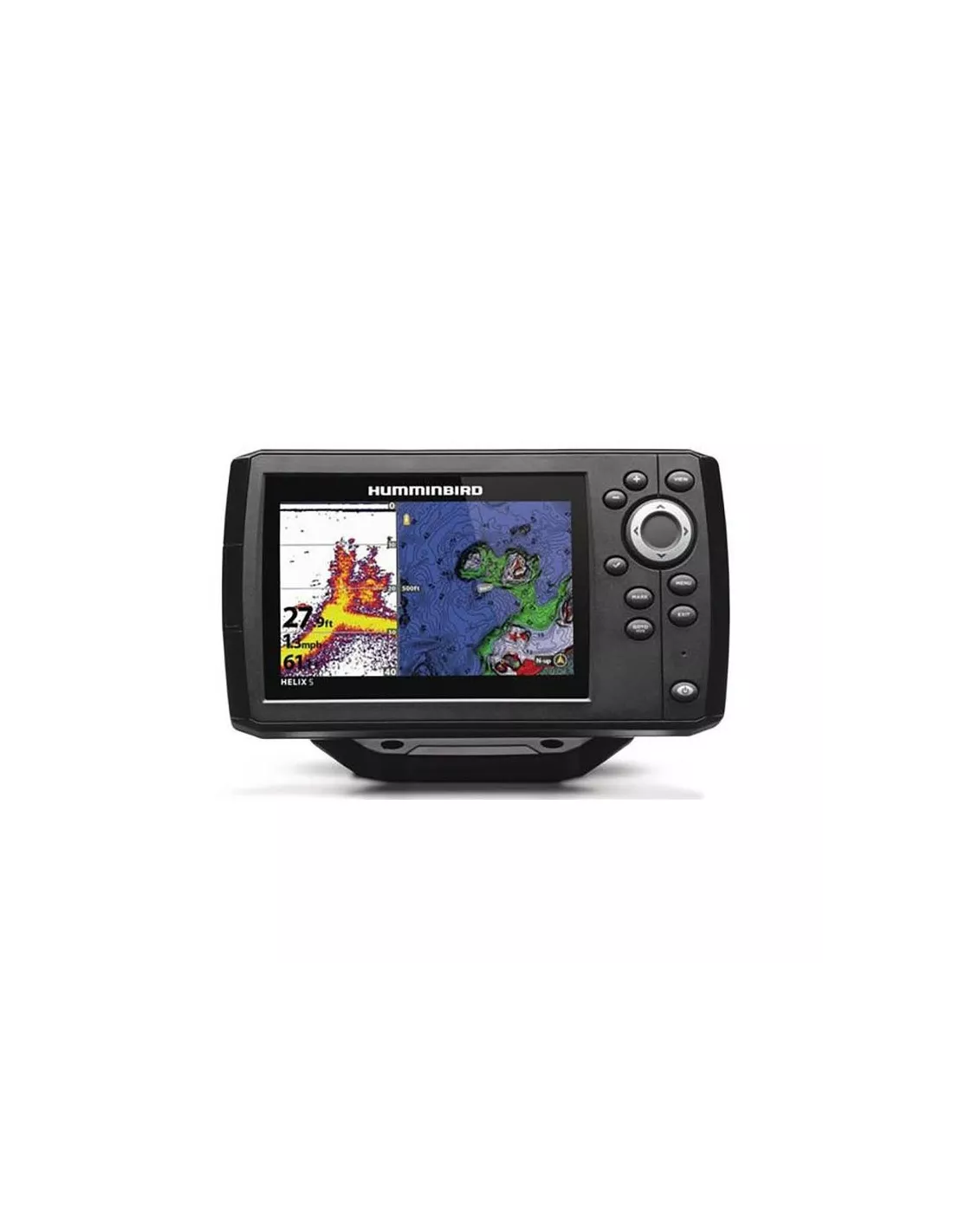

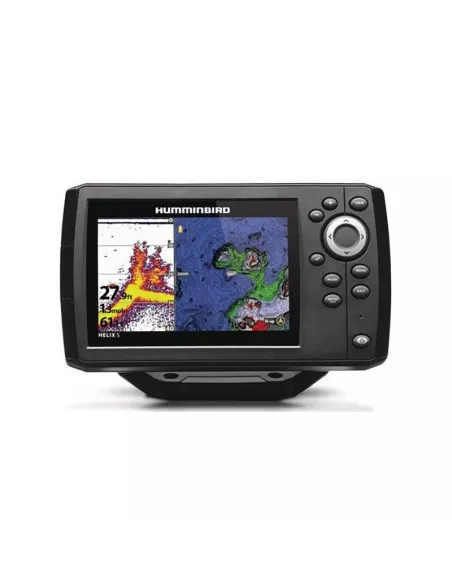

Helix 5 DS G3 Humminbird Color GPS Fishfinder
The new series HELIX 5 GPS G3 offers a 5" panoramic color screen without compromise and Dual Spectrum CHIRP 2D technology, an internal GPS with Humminbird base map and integrated AutoChart Live.
It is compatible with Humminbird LakeMaster / CoastMaster maps as well as Navionics maps.

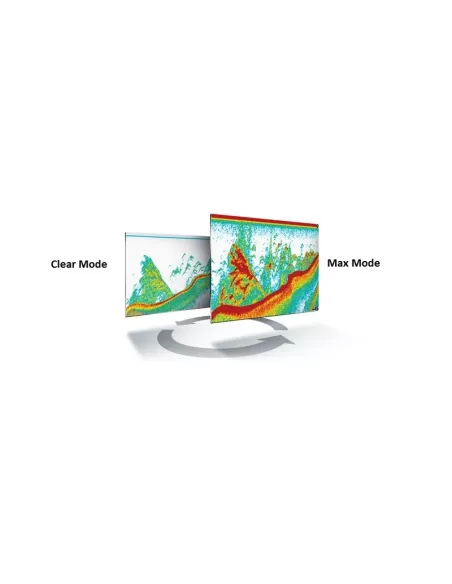

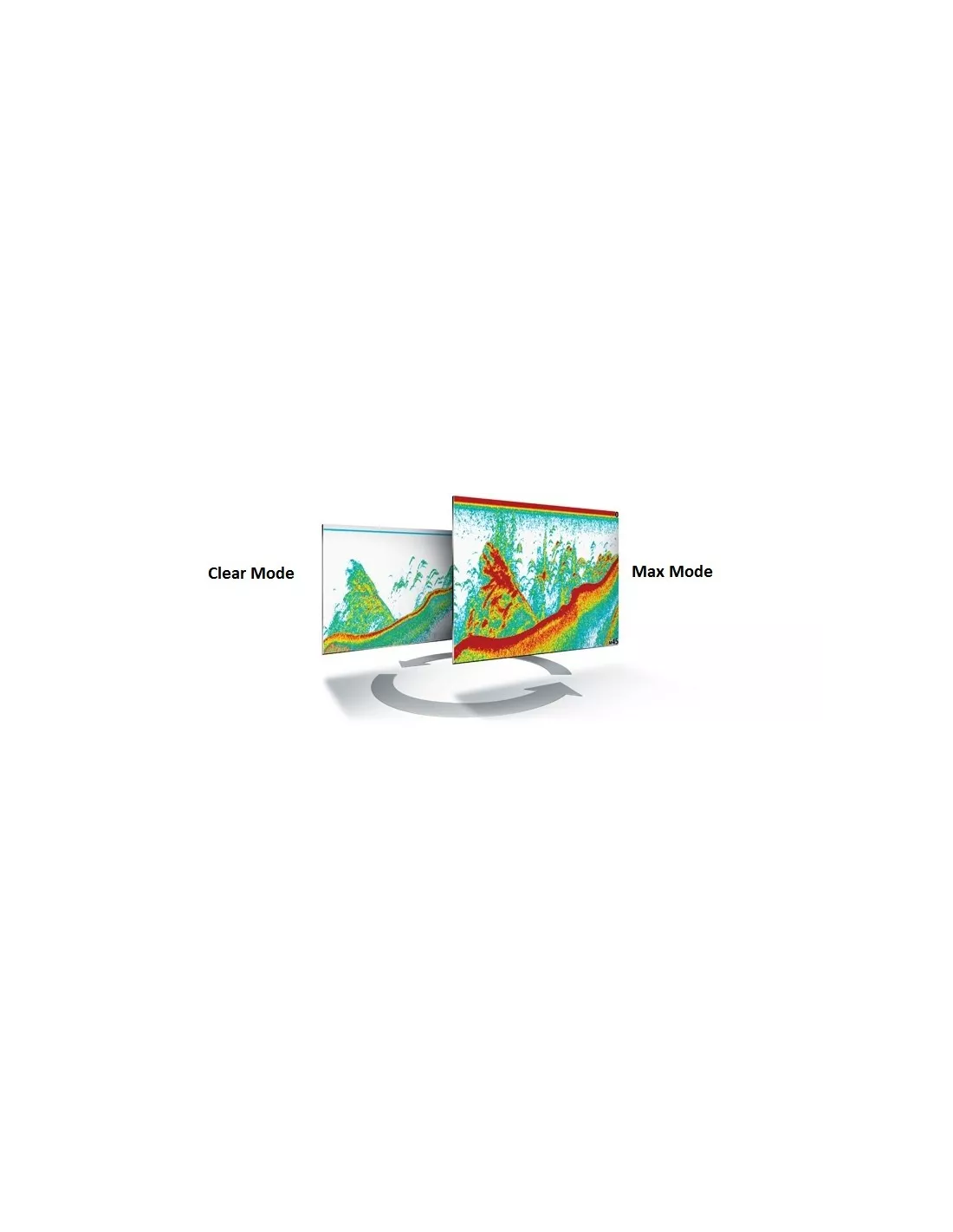

Dual Spectrum CHIRP: Dual Spectrum offers two search methods: wide mode for maximum coverage and narrow mode for maximum detail.
AutoChart Live: Create real-time maps of your fishing spots. Trace depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
Control keyboard: Access preloaded views from the menu, managed by programmable keys that allow you to use your fishfinder reliably in all conditions.
FEATURES
• 5" TFT 256 color Full Sun LCD screen.
• Very high definition screen 800x480 pixels.
• Screen size 110X65mm
• Screen housing size 190X105mm
• Power supply: 12V
• Multifunction GPS chartplotter / 2D fishfinder combo
• Dual Spectrum technology.
• Dual Spectrum Chirp Module Frequencies 140-240Mhz.
• Peak power 4000 watts (500 W RMS).
• Transducer features: DUAL SPECTRUM / narrow beam 180-240 kHz & wide beam 140-200 kHz
• Standard transducer: Transom mount (SH-A103T)
• Water temperature: YES
• Plastic thru-hull transducer: Option (SH-B103T)
• Waterproof IPx7.
• Internal WAAS GPS antenna.
• Micro SD card reader.
• Ability to take screenshots.
• Compatible with Humminbird CoastMaster/LakeMaster Navionics + and Autochart Live maps.
In the box:
• HELIX 5G3 combo screen
• Screen mounting bracket
